Product Description

Technical Specifications:-

• capacity 250Ml -10000 ml

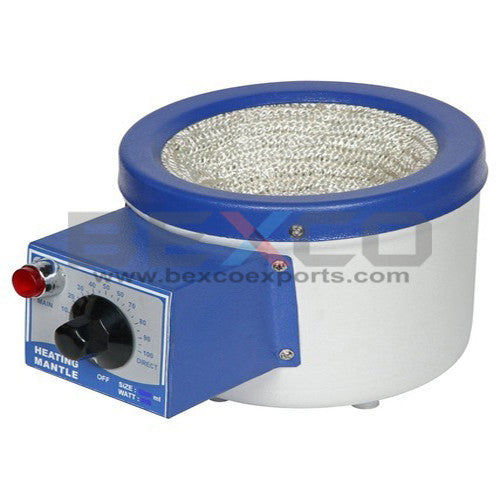

• Heating mantle for round bottom flasks
• Heating Temperature Range Up to 400 degrees, Auto cut off
• Heating Output 60-1800W (according to the capacity)
• Exterior Body Aluminium Alloy
• Heating Element Kanthal Wire
• Temperature Control Energy Regulator
• Voltage Supply 110V
• Frequency 50 Hz
• Supplied with US Plug

Description

• Used for uniform heating/boiling of glass flasks
• Effective heat distribution by glass fibre yarn attached to the heating cords
• Auto cut off as the desired temperature is reached
• Heat resistant aluminium body and powder coated paint
• Suitable for heating flasks as per DIN 12347

Operating Procedure:-

- Put the flask with solvent onto the mantle. Make sure that the flask makes good contact with the yarn.

- Ensure that the power knob is at OFF position

- Connect the heating mantle to power source.

- Switch on the energy regulator by rotating its knob.

- Red indication glows which shows that the heating has started.

- Fix the knob position at maximum i.e. 100. When the desired temperature is attained, reverse the regulator and red light indicator will go OFF.

- Leave the regulator knob at this position. This will maintain the desired temperature.

- After use keep the unit in safe place disconnected from power.

Note:-

The energy regulator dial is marked 0-100. This marking does not indicate temperature. It indicates control level that is at position ‘0’ minimum power is allowed to flow and at position ‘100’ maximum power.

Precautions
- Keep the heating mantle in dry place and ensure that there is no spillage of the solvents on to the surface or the heating yarn.

- In case of the spillage stop the operation of the unit by externally switching off the power to the unit and keep the unit to dry. Operate the unit again only when it is completely dry.
